Overview

Moffett Towers offers unprecedented visibility and expansion potential in an ideal location. Strategically located at the juncture of Highways 101 and 237 in Sunnyvale, CA, Moffett Towers comprises 1.8 million square feet of LEED Gold Certified, Class A office space set on 52 artfully landscaped acres. Seven award-winning towers, each eight stories high, offer unparalleled bay and valley views; a 48,000 square foot fitness center with pool and café provide best-in-class amenities for forward-thinking companies and their employees.

interiors

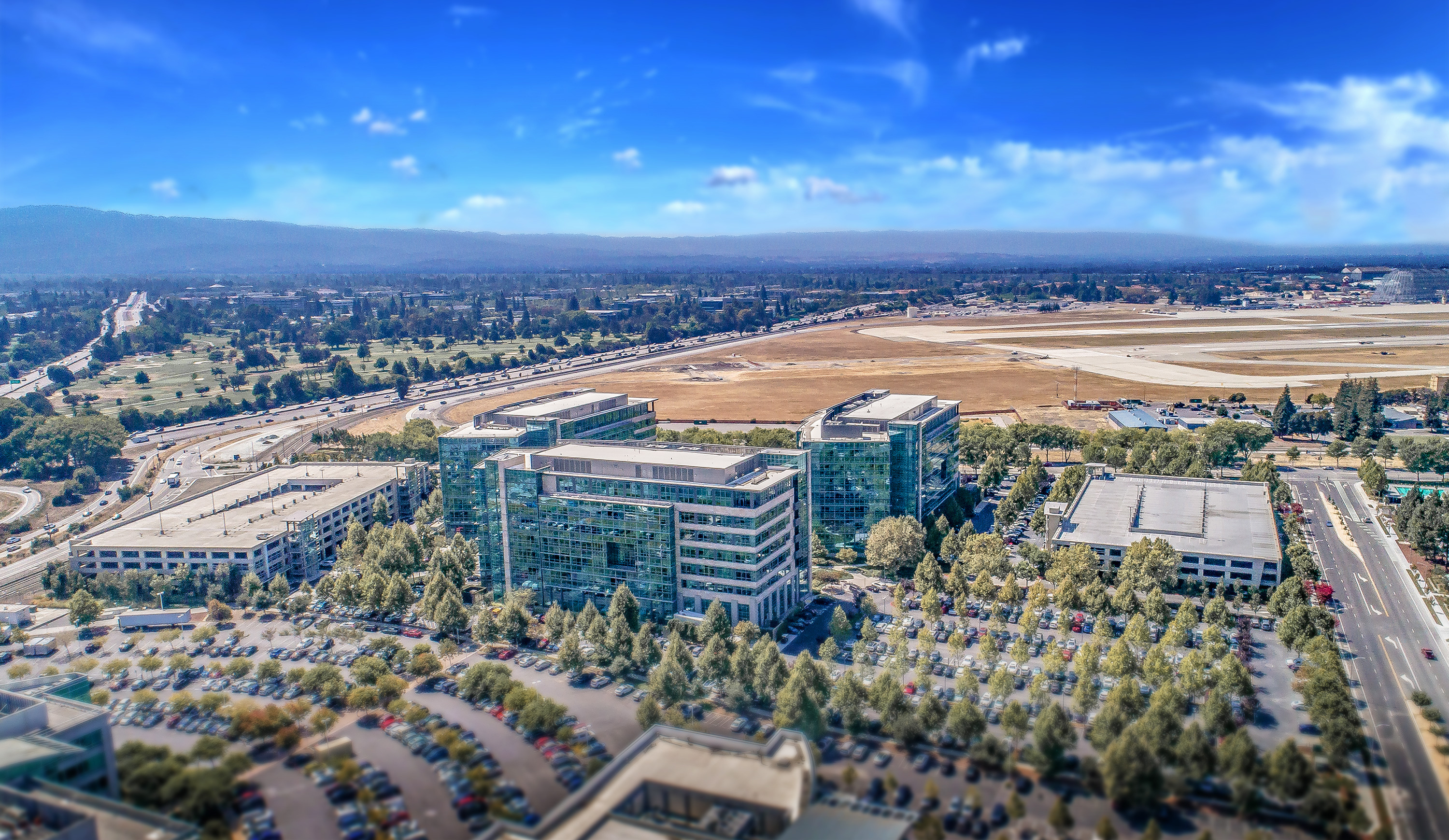

Project Highlights

Moffett Towers offers a uniquely compelling array of benefits to forward thinking companies and their employees. With its centralized location, commanding visibility, LEED certified Gold design and appealing amenities, Moffett Towers is the smart choice for the present and the sustainable choice for the future.

Iconic Class A Office Campus
Highway 101 & 237 Building Signage Available
Full Service Cafeteria and Employee Lounge
Private ±48,000 SF Health & Wellness Club
Central Location at the Intersection of Highways 101 & 237
3.33/1,000 SF Parking Ratio
High Performance LEED Certified Design
Located on VTA Light Rail with Caltrain Connectivity
EV Charging Stations & Bike Lockers

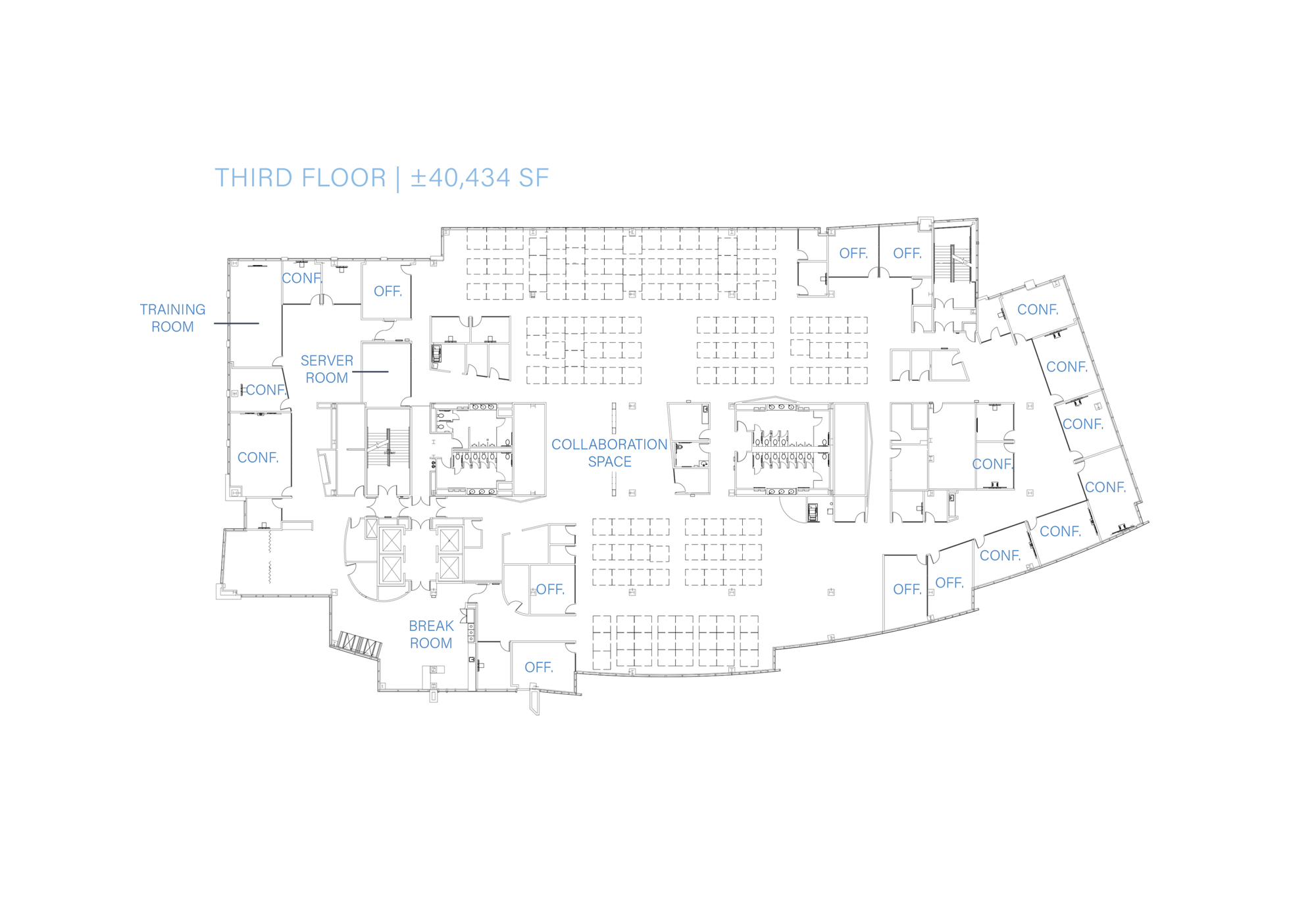

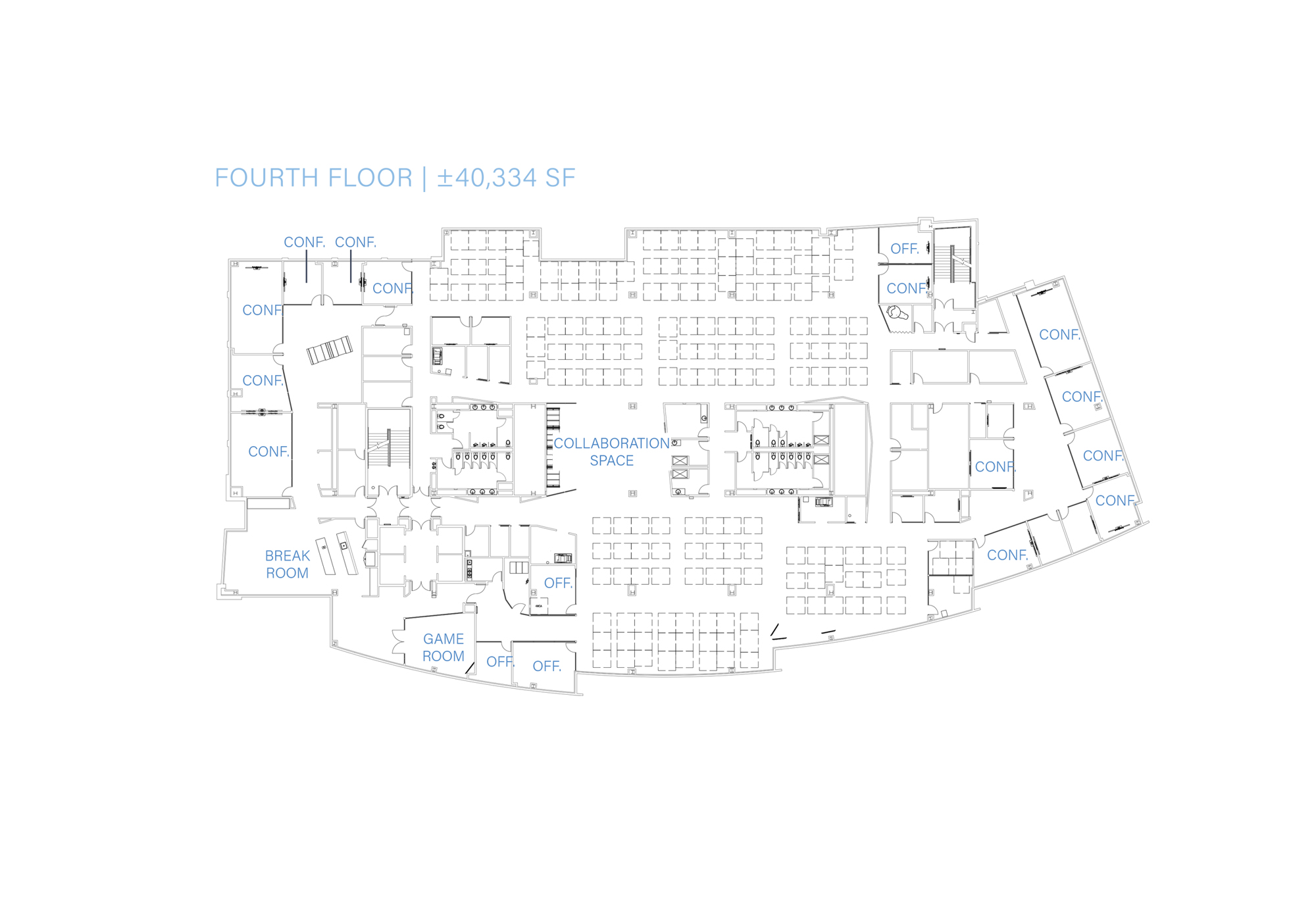

FLOORPLANS

Property Specs

Campus Size

23.2-acre site
Three (3) Class-A office / R&D buildings

Building Location
& Sizes

BA:

1000 Enterprise Way, Sunnyvale
8-story, 318,255 sq. ft.

BB:

1020 Enterprise Way, Sunnyvale
8-story, 316,799 sq. ft.

BC:

1050 Enterprise Way, Sunnyvale
8-story, 317,159 sq. ft.

PS1:

1060 Enterprise Way, Sunnyvale
4 Tiers

PS2:

990 Enterprise Way, Sunnyvale
5 Tiers

Sustainability

BA:

LEED Gold Certified - Core Shell

BB:

LEED Gold Certified - Core Shell

BC:

LEED Gold Certified - Core Shell

Outdoor Plaza & Amenities

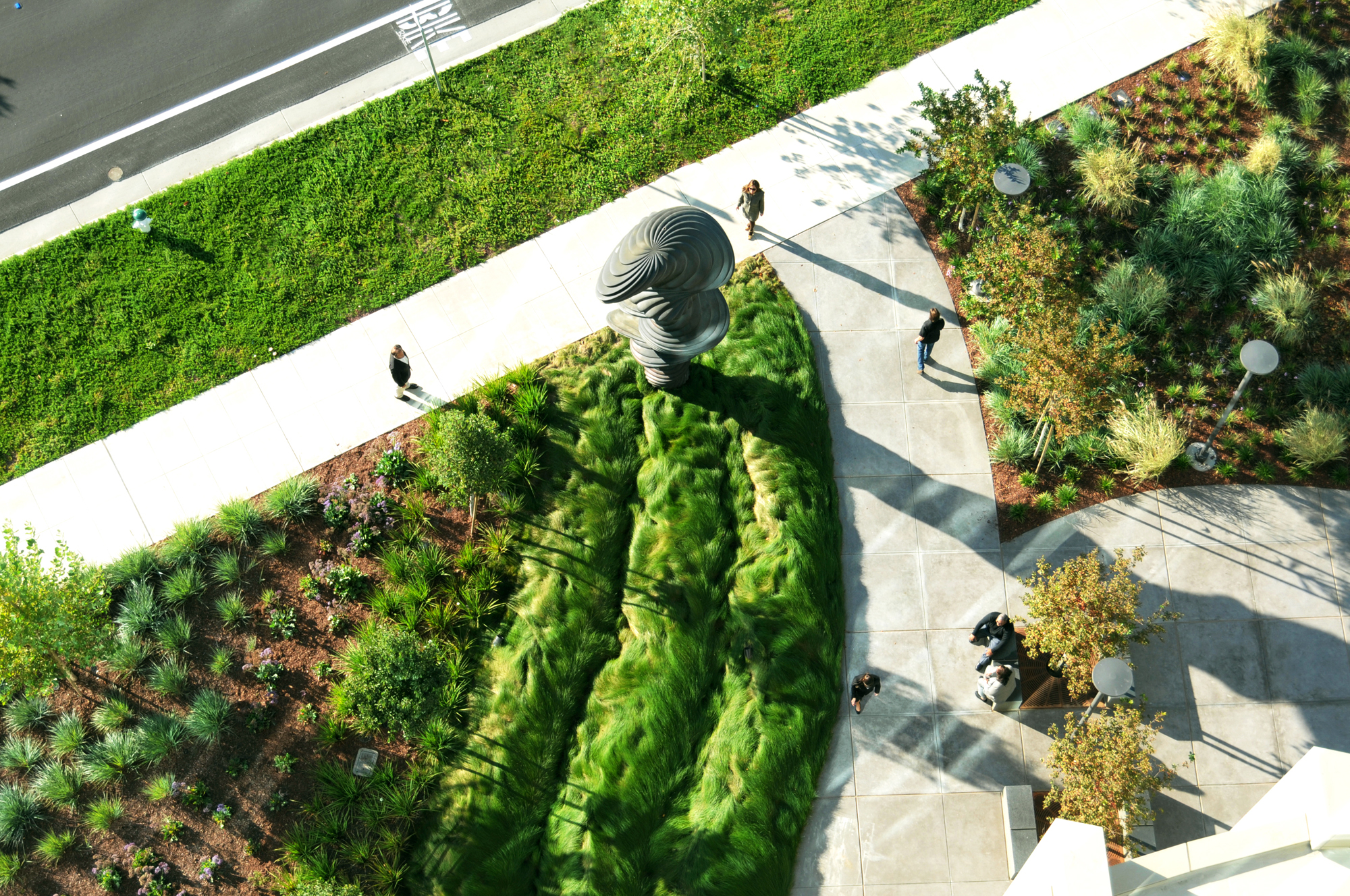

Central Commons with sculptural tree-topped berm creating protected flexible space, multiple seating areas of different sizes for collaboration/ dining
Outdoor Cafe patio spaces at Bldg A and Bldg B

Floor Heights

Office Buildings
• First floor: 16'
• Second to eighth floor: 14'
‍
Parking Structures
• Tier 1: 16'
• Tier 2-6: 14'

Parking

• Provided Parking : 3.33/1,000
• Parking Structure 1: 750
• Parking Structure 2: 1,168
• Surface Parking: 916
• Total Stalls: 2,834

Elevators

1 Service Elevator
• Gen2 Capacity = 4,000 Pounds
‍
3 Passenger Elevators
• Gen2 Capacity = 3,500 Pounds

Electrical System

PG&E Electrical Service

BA:

4000A Main Service

BB:

4000A Main Service

BC:

4000A Main Service

PS1:

600A Main Service

PS2:

400A Main Service

Life Safety Generator

BA:

1500 KW / 1875 kVa

BB:

2000 KW / 2500 kVa

BC:

2000 KW / 2500 kVa

Electrical Service to the Building’s Main Electrical Room with Secondary Distribution to Each Floor. Electrical Room and Equipment Penthouse. Service Includes Connection to all Shell-installed Equipment, Building Cores, and Lobby Areas
Two Electrical Rooms All Levels (Bus Duct Riser’s in each, 480/277v Panel’s, Step Down Transformer’s and 120/208v Panels Only in One of the Electrical Room Riser per Floor)

Tenant allowances:

5.0 watts/sqft for Receptacles
3.5 watts/sqft for Lighting, and Support up to 1500Kw of Additional Tenant Loads

Building Envelope

BA/BB/BC

Aluminum curtain wall system, All-Wall Stick system by Walters and Wolf
Vision glass (Glass Type 1): 1” thick insulated glass, 1/4” Green HS VRE-59 #2, 1/2” Mill spacer, 14” Clear
Spandrel glass (Glass Type 1): 1” thick insulated glass, 1/4” Green HS VRE-59 #2, 1/2” Mill spacer, 14” Clear with VC Viraspan 1282 #4
Stone Panel System

Heating, Ventilation and Air Conditioning

Mechanical Equipment - Landlord Installed

4 Supply Fans (with VFD’s)
6 Return Fans (with VFD’s)
2 Chillers (Water Cooled)
2 Cooling Towers
2 Boilers
Total Cooling Capacity = 700 Ton
Total Heating Capacity = 4,000 MBH
Cooling System Airflow = 0.94 CFM/Floor
Built Up Air System
Stairwell and Hoistway Pressurization Fan
Exhaust Fans for Toilet/Janitor Spaces

Mechanical Equipment - Tenant Installed

Bldg A: 1 Cooling Tower Rated for 350 Tons of Heat Rejection
Bldg B: Total Supplemental Cooling Capacity = 377 Ton
Bldg C: Total Supplemental Cooling Capacity = 750 Ton

Additional Provisions

Exhaust for Tenants = 300 CFM/Floor
Structural Support/ Roof Provisions for Added Cooling
Duct/VAV Boxes/Air Distribution to Serve Lobby’s and 1st floor Restrooms
Vertical Supply Duct and Plenum Shaft Return with FSDs at Each Floor. HW Piping Riser to Each Floor.

HVAC

Roof-mounted units, Vertical Distribution and Main Horizontal Distribution
All Finished Core and Lobby Areas will have a Completed Mechanical System per Landlord’s minimum HVAC Criteria.
No Duct Loop Per Floor

prime Location

Location

465 North Mary is in an ideal location for the digital age: an open-space campus on a tree-lined avenue between Apple and LinkedIn, with Synopsys, Google, Juniper Networks, Advanced Micro Devices and Yahoo as neighbors.

±15 Minutes from Moffett Towers to Downtown Mountain View Caltrain
±45 minutes from Downtown Mountain View Caltrain to San Francisco
±1 Hour from Moffett Towers to San Francisco Via VTA + Caltrain
